CNC machining software

The main types of CNC software include computer-aided design (CAD) software, which creates 2D and 3D models of parts and assemblies, and computer-aided manufacturing (CAM) software, which translates CAD models into G-code or another code that informs CNC machines how to produce the part. CNC simulator software simulates the CNC machining of parts to identify potential errors before physically attempting fabrication. Some CNC software, such as Autodesk Fusion, includes CAD, CAM, simulation, and more in a single package.

Also, CNC software is available as offline and online programming. Offline programming permits the creation of NC code as the machine is in operation, increasing productivity and shop-floor throughput. In contrast, online programming does not allow the machine to produce parts while the operator writes CNC software code.

To ensure the CNC software of your choice is compatible with your machinery, you can check the machine manufacturer’s manual and/or website for recommendations on the software, operating systems, communication protocol, and hardware interfaces that can be used with the machines. Check the software company’s technical support to ensure the software supports G-code or other file types that work with your machines.

If it’s still unclear, check with online user groups, forums, or reviews for first-hand feedback on your CNC machine and software pairing. If available, try a free trial or demo of the software before buying to test it with your CNC machinery.

One of the most significant costs associated with CNC machining is the CNC machine itself. Entry-level machines start at around $5,000 USD, with high-end machines reaching upward of $500,000 USD. The cost depends on factors like size, power, spindle speed, multi-axis capabilities, accuracy, the capacity of tool changers, multi-pallet for increased automation, high-pressure through spindle coolant, and more. Once you have a machine, you must purchase cutting tools to machine parts. To generate the instructions required for CNC machining, it’s also common to subscribe to computer-aided manufacturing (CAM) software. So, while there’s no one-size-fits-all answer, CNC machining requires some upfront investment.

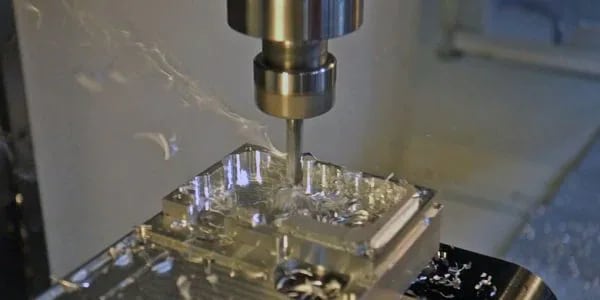

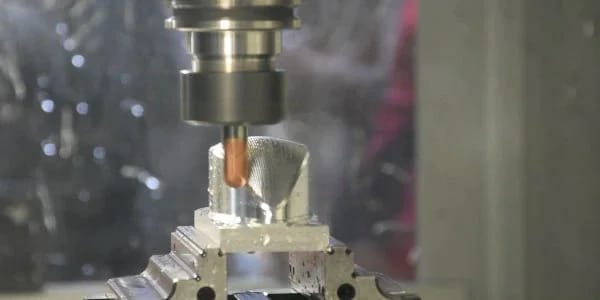

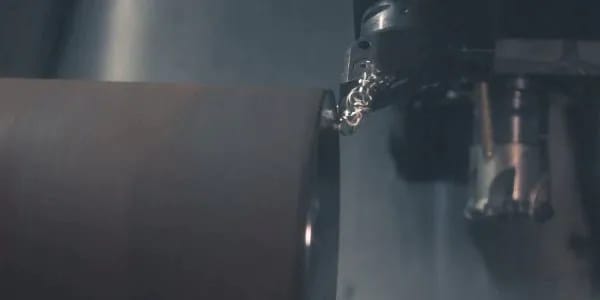

Milling is one style of CNC machining. CNC machining is any process where a machine controlled by a computer manufactures a part. In milling, a cutting tool spins at high speeds and advances into or across the workpiece to remove material. Other types of CNC machining include turning, routing, plasma cutting, and water jetting. Turning and milling can be combined into a single machine, as can additive and subtractive operations, creating even more complex styles, such as hybrid manufacturing, which combines subtractive and additive manufacturing.

3D printing, or additive manufacturing, is the process of depositing layers of material to build up the desired geometry. Generally speaking, CNC machining refers to subtractive processes where the material is removed from the workpiece, resulting in the desired geometry. While 3D printing processes can create more complex geometry like internal latticing, parts need support during printing to prevent failure. CNC machining generally produces more accurate parts and can be significantly faster, especially when manufacturing single parts.

Many manufacturers are using additive and subtractive manufacturing together. In simple cases, they 3D print a part, then use CNC milling to machine critical features such as holes, slots, and mating faces that need additional precision. In more niche applications, hybrid manufacturing can inter-weave additive and subtractive processes to combine the best of both technologies. For example, a manufacturer may print a hollow part and include CNC machining steps at regular intervals throughout the 3D print process instead of doing all the printing followed by all the CNC machining.

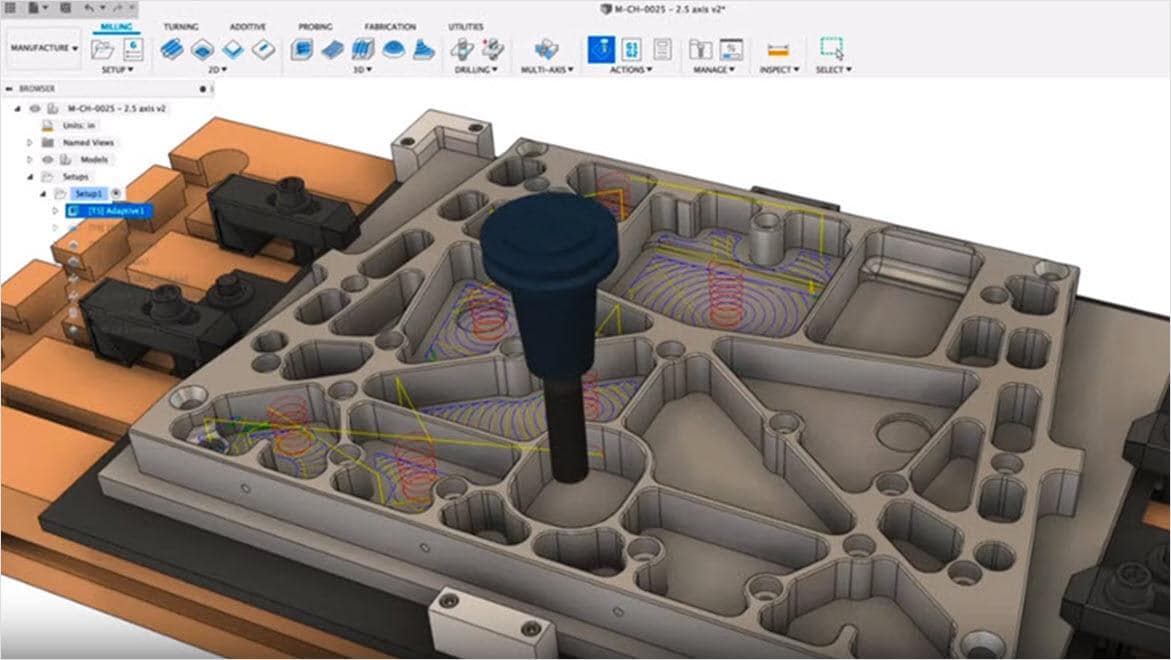

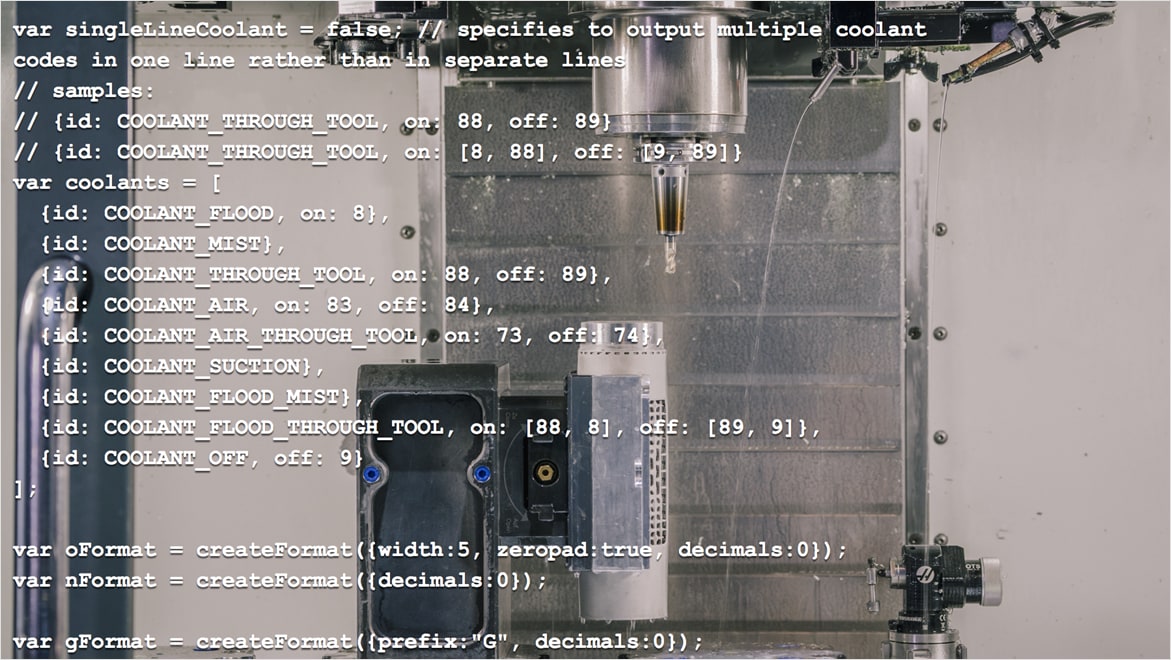

CNC stands for Computer Numerical Control, which means that a computer controls what the machine does, including (but not limited to) the spindle speed, feed rate, and position. To program the computer — often called a control — a person can use computer-aided manufacturing (CAM) software. CAM software for CNC generates a series of instructions called toolpaths and then generally uses a post-processor to translate that toolpath data into code the machine can read. A person would then transfer that code onto the machine and run it to produce the final part.

Yes — Autodesk Fusion includes a powerful and easy-to-use CNC software solution that can control various CNC machines, including mills, lathes, routers, mill/turn machines, plasma cutters, water jets, and lasers. Autodesk Fusion also integrates CAD, CAE, ECAD, and CAM into a single solution to reduce data loss and improve process reliability for CNC machining and other downstream processes.

Computer-Aided Design (CAD) software for CNC (Computer Numerical Control) machines is a type of program that helps engineers and designers create precise 3D models of parts and assemblies to be produced on a CNC machine.

 The software allows the user to design a part or assembly in a virtual environment, then convert that design into a language (G-code) that the CNC machine can understand. The program instructs the CNC machine how to move and what actions to perform to create the part as designed.

 One of the most popular CAD programs for CNC machining is Autodesk's Fusion, which integrates CAD, CAM, CAE, and PCB in a single cloud-based platform. It provides the ability to design, test, and fabricate in a single environment, making it easier to go from design to manufacturing

CNC (Computer Numerical Control) machining software provides the interface for controlling, managing, and programming CNC machines. The software is used to create a set of instructions in the form of G-code or M-code, which guide the machine tools to perform the desired operations.
